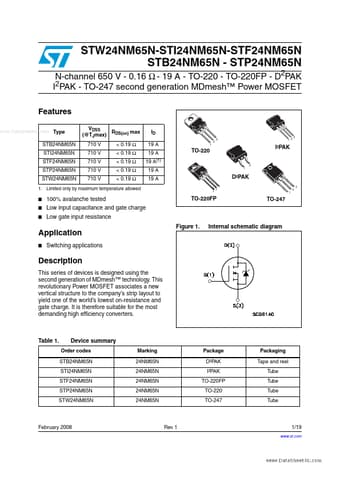

STW24NM65N - N-channel Power MOSFET

STMicroelectronics

Datasheet Details

Part number	STW24NM65N
Manufacturer	STMicroelectronics
File Size	593.66 KB
Description	N-channel Power MOSFET
Datasheet	STW24NM65N_STMicroelectronics.pdf

This series of devices is designed using the second generation of MDmesh™ technology.

www. DataSheet4U. com Type VDSS (@TJmax) 710 V 710 V 710 V 710 V 710 V RDS(on) max < 0.19 Ω < 0.19 Ω < 0.19 Ω < 0.19 Ω < 0.19 Ω ID 3 STB24NM65N STI24NM65N STF24NM65N STP24NM65N STW24NM65N 19 A 19 A 19 A(1) 19 A 19 A 1 2 3 12 TO-220 3 1 I²PAK D²PAK 3 1 2 1. Limited only by maximum temperature allowed.
2 1 3 100% avalanche tested Low input capacitance and gate charge Low gate input resistance TO-220FP TO-247 Figure 1. Internal schematic diagram.
