STW4811N Datasheet, Management, STMicroelectronics

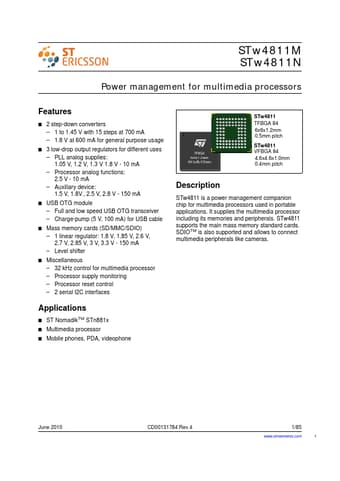

STW4811N Features

• Management
• 2 step-down converters
    – 1 to 1.45 V with 15 steps at 700 mA
    – 1.8 V at 600 mA for general purpose usage
• 3 low-drop output regulators

PDF File Details

Part number:

STW4811N

Manufacturer:

STMicroelectronics ↗

File Size:

1.07MB

Download:

📄 Datasheet

Description:

Power management. STw4811 is a power management companion chip for multimedia processors used in portable applications. It supplies the multimedia proc

STW4811N Application

• Applications
• ST NomadikTM STn881x
• Multimedia processor
• Mobile phones, PDA, videophone STw4811 TFBGA 84 6x6x1.2mm 0.5m
