STW48N60DM2 Datasheet, Mosfet, STMicroelectronics

STW48N60DM2 Features

  • Mosfet Order code STW48N60DM2 VDS 600 V RDS(on) max. 0.079 Ω ID 40 A
  • Fast-recovery body diode
  • Extremely low gate charge and input capacitance
  • Low on-resistanc

PDF File Details

Part number:

STW48N60DM2

Manufacturer:

STMicroelectronics ↗

File Size:

583.26kb

Download:

📄 Datasheet

Description:

N-channel mosfet. This high voltage N-channel Power MOSFET is part of the MDmesh™ DM2 fast recovery diode series. It offers very low recovery charge (Q

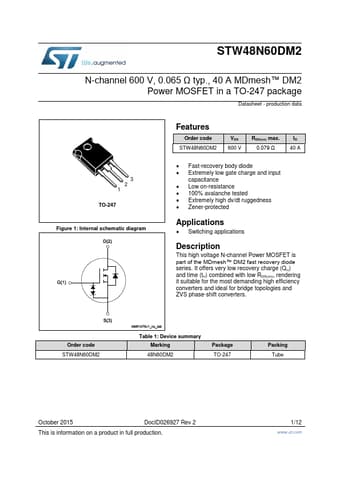

Datasheet Preview: STW48N60DM2 📥 Download PDF (583.26kb)
Page 2 of STW48N60DM2 Page 3 of STW48N60DM2

STW48N60DM2 Application

  • Applications
  • Switching applications Description This high voltage N-channel Power MOSFET is part of the MDmesh™ DM2 fast recovery diode se
