STW48N60M2-4 Datasheet - STMicroelectronics

N-Channel Power MOSFET

STW48N60M2-4 Features

* Order code VDS @ TJmax. RDS(on)max. ID STW48N60M2-4 650 V 70 mΩ 42 A

* Excellent switching performance thanks to the extra driving source pin

* Extremely low gate charge

* Excellent output capacitance (Coss) profile

* 100% avalanche tested

* Zener-pro

STW48N60M2-4 General Description

This device is an N-channel Power MOSFET developed using MDmesh M2 technology. Thanks to its strip layout and an improved vertical structure, the device exhibits low on-resistance and optimized switching characteristics, rendering it suitable for the most demanding high efficiency converters. Produ.

STW48N60M2-4 Datasheet (284.87 KB)

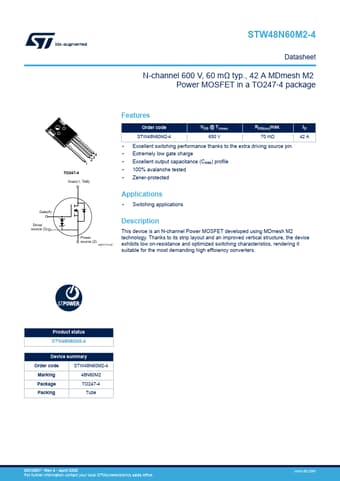

Preview of STW48N60M2-4 PDF

Datasheet Details

Part number:

STW48N60M2-4

Manufacturer:

STMicroelectronics ↗

File Size:

284.87 KB

Description:

N-channel power mosfet.
STW48N60M2-4 Datasheet N-channel 600 V, 60 mΩ typ., 42 A MDmesh M2 Power MOSFET in a TO247‑4 package Gate(4) Driver source (3) 2 34 1 TO247-4 Drain(.
