STW48NM60N

N-CHANNEL MOSFET

STW48NM60N Features

* Order codes STW48NM60N VDSS @ TJmax 650 V RDS(on) max < 0.07 Ω ID 44 A

* 100% avalanche tested

* Low input capacitance and gate charge

* Low gate input resistance Applications

* Switching applications Description This device is an N-channel Power MOSFET developed using the se

STW48NM60N General Description

This device is an N-channel Power MOSFET developed using the second generation of MDmesh™ technology. This revolutionary Power MOSFET associates a vertical structure to the company’s strip layout to yield one of the world’s lowest on-resistance and gate charge. It is therefore suitable for the most.

STW48NM60N Datasheet (339.97 KB)

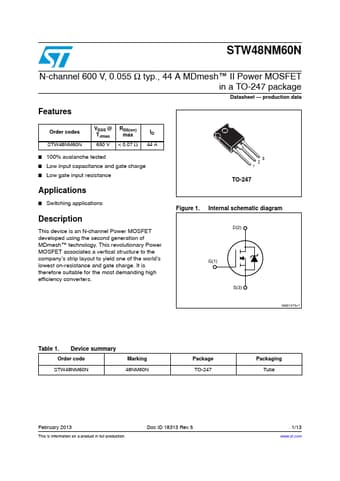

Preview of STW48NM60N PDF

Datasheet Details

Part number:

STW48NM60N

Manufacturer:

STMicroelectronics ↗

File Size:

339.97 KB

Description:

N-channel mosfet.
