STW80NF10 N-Channel Power MOSFET

📥 Download Datasheet Datasheet Preview Page 1

Description

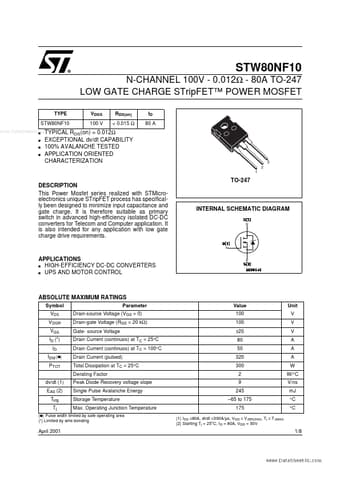

N-CHANNEL 100V - 0.012Ω - 80A TO-247 LOW GATE CHARGE STripFET™ POWER MOSFET TYPE STW80NF10 www.DataSheet4U.com s TYPICAL s s s STW80NF10 VDSS 100 V .
This Power Mosfet series realized with STMicroelectronics unique STripFET process has specifically been designed to minimize input capacitance and gat.

📥 Download Datasheet

Preview of STW80NF10 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Applications

* s HIGH-EFFICIENCY DC-DC CONVERTERS s UPS AND MOTOR CONTROL ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID (
* ) ID IDM (q) PTOT dv/dt (1) EAS (2) Tstg Tj Parameter Drain-source Voltage (VGS = 0) Drain-gate Voltage (RGS = 20 kΩ) Gate- source Voltage Drain Current (continuos) at TC = 25°C Drain Cu
