STW80NF12 N-Channel Power MOSFET

STMicroelectronics

Description

STB80NF12 STW80NF12 STP80NF12 STP80NF12FP N-CHANNEL 120V-0.013Ω-80A TO-220/TO-247/TO-220FP/D²PAK STripFET™ II POWER MOSFET TYPE STB80NF12 STP80NF12 ww.
This MOSFET series realized with STMicroelectronics unique STripFET process has specifically been designed to minimize input capacitance and gate char.

📥 Download Datasheet

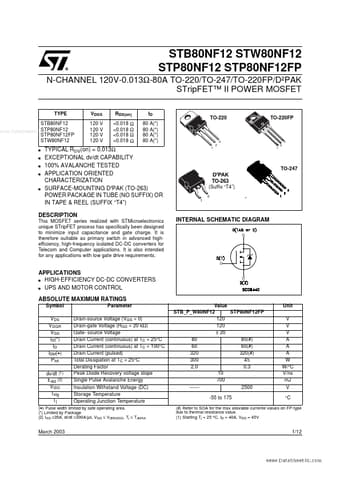

STW80NF12 Datasheet Preview — Preview of STW80NF12 PDF

Datasheet Specifications

Part number: STW80NF12
Manufacturer: STMicroelectronics ↗
File Size: 387.13 KB
Datasheet: STW80NF12_STMicroelectronics.pdf
Description: N-Channel Power MOSFET

Applications

* It is also intended for any applications with low gate drive requirements. INTERNAL SCHEMATIC DIAGRAM APPLICATIONS s HIGH-EFFICIENCY DC-DC CONVERTERS s UPS AND MOTOR CONTROL ABSOLUTE MAXIMUM RATINGS Symbol VDS VDGR VGS ID(
