STuW81300 - Wideband RF/microwave PLL fractional/integer frequency synthesizer

STMicroelectronics

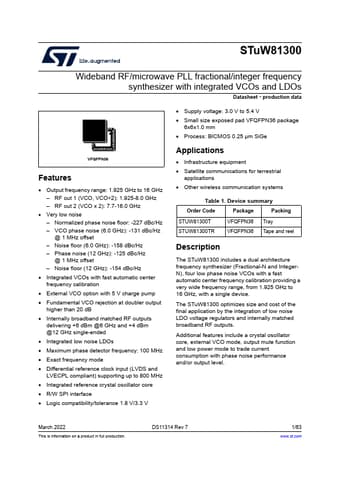

STuW81300 Datasheet Preview — Preview of STuW81300 PDF

Datasheet Details

Part number	STuW81300
Manufacturer	STMicroelectronics ↗
File Size	1.86 MB
Description	Wideband RF/microwave PLL fractional/integer frequency synthesizer
Datasheet	STuW81300-STMicroelectronics.pdf

STuW81300 Product details

Description

The STuW81300 includes a dual architecture frequency synthesizer (Fractional-N and IntegerN), four low phase noise VCOs with a fast automatic center frequency calibration providing a very wide frequency range, from 1.925 GHz to 16 GHz, with a single device.

Features

Output frequency range: 1.925 GHz to 16 GHz.
RF out 1 (VCO, VCO÷2): 1.925-8.0 GHz.
RF out 2 (VCO x 2): 7.7-16.0 GHz.
Very low noise.
Normalized phase noise floor: -227 dBc/Hz.
VCO phase noise (6.0 GHz): -131 dBc/Hz @ 1 MHz offset.
Noise floor (6.0 GHz): -158 dBc/Hz.
Phase noise (12 GHz): -125 dBc/Hz @ 1 MHz offset.
Noise floor (12 GHz): -154 dBc/Hz.
Integrated VCOs with fast automatic center frequency cali.
