TS4657 Single supply stereo digital audio line driver

TS4657 Description

TS4657 Single supply stereo digital audio line driver with 2.2 Vrms capless outputs .

TS4657 Features

* Single 3.0 to 5.5 V supply for DAC and line driver
* Audio line output: 2.2 Vrms for all VCC range
* 16- to 24-bit audio data format stereo DAC, 32 to 48 kHz sample rate
* I²S, right- or left-justified compatible digital audio interface
* 95 dB SNR A-weighted at 48 kHz, VCC =5

TS4657 Applications

* Digital set-top boxes
* DVD players
* Digital TVs
* Notebooks
* Portable audio equipment
* Sound cards Pin connections (top view) NC VCCD VREGD GNDD GNDA 20 GNDD 1 NC LRCLK SDAT BCLK 5 6 16 15 GNDA VREGA VCCA VOUTL 11 VOUTR 10 MCLK FORMAT2 FORMAT1 STDBY G

📥 Download Datasheet

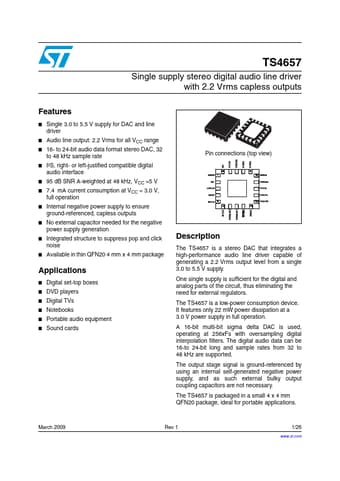

Preview of TS4657 PDF
