TSC211

zero-drift current sense amplifier

STMicroelectronics

TSC211 Features

* Wide common mode voltage: -0.3 to 26 V

* Offset voltage: ±35 µV max. (TSC210)

* 2.7 to 26 V supply voltage

* Different gain available

* TSC210 (200 V/V)

* TSC211 (500 V/V)

* TSC212 (1000 V/V)

* TSC213 (50 V/V)

* TSC2

TSC211 General Description

The TSC210, TSC211, TSC212, TSC213, TSC214 and TSC215 are a series of zerodrift current sense amplifiers that can sense current via a shunt resistor over a wide range of common mode voltages from -0.3 to +26 V, whatever the supply voltage is. They are available in three different versions, each of t.

TSC211 Datasheet (1.74 MB)

TSC211 Datasheet Preview — Preview of TSC211 PDF

Datasheet Details

Part number:

TSC211

Manufacturer:

STMicroelectronics ↗

File Size:

1.74 MB

Description:

Zero-drift current sense amplifier.

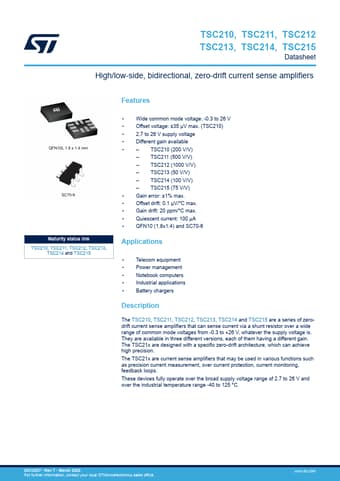

TSC210, TSC211, TSC212 TSC213, TSC214, TSC215 Datasheet High/low-side, bidirectional, zero-drift current sense amplifiers Product status link TSC210,.
