TSX3702 Datasheet, Comparators, STMicroelectronics

TSX3702 Features

  • Comparators
  • Low supply current: 5 µA typ. per comparator
  • Wide single supply range 2.7 V to 16 V or dual supplies (±1.35 V to ±8 V)
  • Extremely low input bias current: 1

PDF File Details

Part number:

TSX3702

Manufacturer:

STMicroelectronics ↗

File Size:

857.59kb

Download:

📄 Datasheet

Description:

Micropower dual cmos voltage comparators. The TSX3702 is a micropower CMOS dual voltage comparator which exhibits a very low current consumption of 5 µA typical per comparator

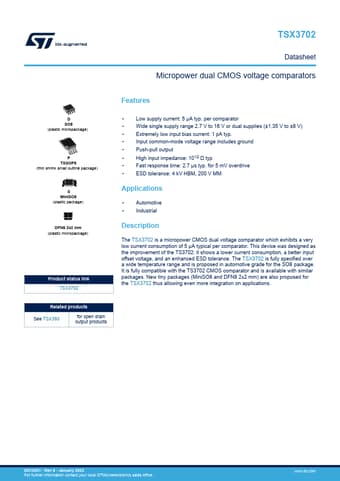

Datasheet Preview: TSX3702 📥 Download PDF (857.59kb)
Page 2 of TSX3702 Page 3 of TSX3702

TSX3702 Application

  • Applications
  • Automotive
  • Industrial Description The TSX3702 is a micropower CMOS dual voltage comparator which exhibits a very lo
