TSX3704

Micropower quad CMOS voltage comparators

TSX3704 Features

* Low supply current: 5 µA typ. per comparator Wide single supply range 2.7 V to 16 V or dual supplies (±1.35 V to ±8 V) Extremely low input bias current: 1 pA typ. Input common-mode voltage range includes ground Push-pull output High input impedance: 1012 Ω typ Fast response time: 2.7 µs typ. for 5 m

TSX3704 General Description

The TSX3704 is a micropower CMOS quad voltage comparator which exhibits a very low current consumption of 5 µA typical per comparator. This device was designed as the improvement of the TS3704: it shows a lower current consumption, a better input offset voltage, and an enhanced ESD tolerance. The TS.

TSX3704 Datasheet (695.66 KB)

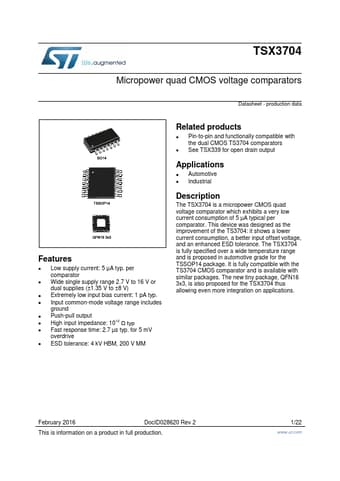

Preview of TSX3704 PDF

Datasheet Details

Part number:

TSX3704

Manufacturer:

STMicroelectronics ↗

File Size:

695.66 KB

Description:

Micropower quad cmos voltage comparators.
