TSX393

Micropower dual CMOS voltage comparators

TSX393 Features

* Low supply current: 5 µA typ. per comparator

* Wide single supply range 2.7 V to 16 V or dual supplies (±1.35 V to ±8 V)

* Extremely low input bias current: 1 pA typ.

* Input common-mode voltage range includes ground

* Open drain output

* High input

TSX393 General Description

The TSX393 is a micropower CMOS dual voltage comparator which exhibits a very low current consumption of 5 µA typical per comparator. This device was designed as the improvement of the TS393: it shows a lower current consumption, a better input offset voltage, and an enhanced ESD tolerance. The TSX3.

TSX393 Datasheet (771.20 KB)

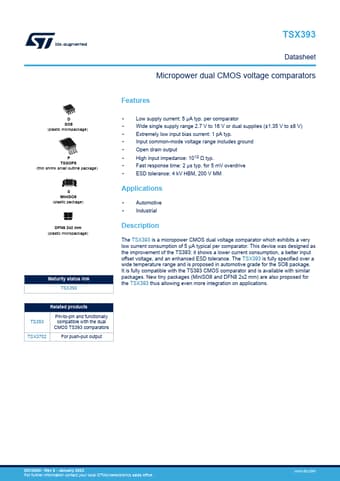

Preview of TSX393 PDF

Datasheet Details

Part number:

TSX393

Manufacturer:

STMicroelectronics ↗

File Size:

771.20 KB

Description:

Micropower dual cmos voltage comparators.
TSX393 Datasheet Micropower dual CMOS voltage comparators D SO8 (plastic micropackage) P TSSOP8 (thin shrink small outline package) S MiniSO8 (plasti.
