VNB20N07

FULLY AUTOPROTECTED POWER MOSFET

VNB20N07 Features

* During normal operation, the Input pin is electrically connected to the gate of the internal power MOSFET. The device then behaves like a standard power MOSFET and can be used as a switch from DC to 50 KHz. The only difference from the user’s standpoint is that a small DC current (Iiss) flows into t

VNB20N07 General Description

The VNP20N07FI, VNB20N07 and VNV20N07 are monolithic devices made using STMicroelectronics VlPower M0 Technology, intended for replacement of standard power MOSFETS in DC to 50 KHz applications. Built-in thermal shut-down, linear current limitation and overvoltage clamp protect the chip in harsh BL.

VNB20N07 Datasheet (398.22 KB)

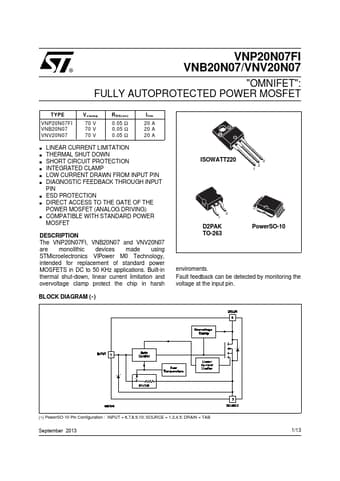

Preview of VNB20N07 PDF

Datasheet Details

Part number:

VNB20N07

Manufacturer:

STMicroelectronics ↗

File Size:

398.22 KB

Description:

Fully autoprotected power mosfet.
VNP20N07FI ® VNB20N07/VNV20N07 "OMNIFET": FULLY AUTOPROTECTED POWER MOSFET TYPE VNP20N07FI VNB20N07 VNV20N07 Vclamp 70 V 70 V 70 V RDS(on) 0.05 .
