W20NM50

STW20NM50

STMicroelectronics

W20NM50 General Description

le The MDmesh™ is a new revolutionary MOSFET o technology that associates the Multiple Drain pros cess with the Company’s PowerMESH™ horizontal b layout. The resulting product has an outstanding low O on-resistance, impressively high dv/dt and excellent - avalanche characteristics. The adoption of t.

W20NM50 Datasheet (178.22 KB)

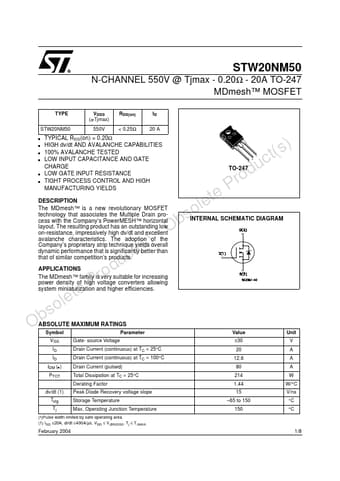

W20NM50 Datasheet Preview — Preview of W20NM50 PDF

Datasheet Details

Part number:

W20NM50

Manufacturer:

STMicroelectronics ↗

File Size:

178.22 KB

Description:

Stw20nm50.
STW20NM50 N-CHANNEL 550V @ Tjmax - 0.20Ω - 20A TO-247 MDmesh™ MOSFET TYPE VDSS RDS(on) ID (@Tjmax) STW20NM50 550V < 0.25Ω 20 A TYPICAL RDS(o.
