W20NM60FD Datasheet - ST Microelectronics

N-CHANNEL MOSFET

W20NM60FD General Description

The FDmesh™ associates all advantages of reduced on-resistance and fast switching with an intrinsic fast-recovery body diode. It is therefore strongly recommended for bridge topologies, in particular ZVS phase-shift converters. INTERNAL SCHEMATIC DIAGRAM n APPLICATIONS ZVS PHASE-SHIFT FULL BRIDGE.

W20NM60FD Datasheet (324.12 KB)

W20NM60FD Datasheet Preview — Preview of W20NM60FD PDF

Datasheet Details

Part number:

W20NM60FD

Manufacturer:

STMicroelectronics ↗

File Size:

324.12 KB

Description:

N-channel mosfet.

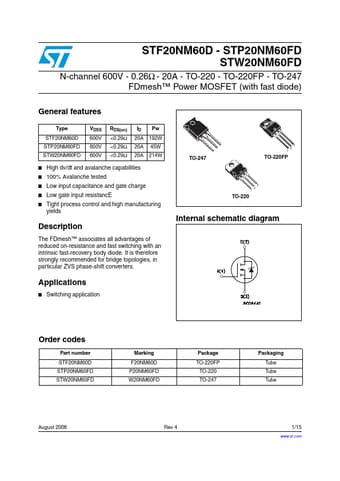

STP20NM60FD - STF20NM60D STW20NM60FD N-CHANNEL 600V - 0.26Ω - 20A TO-220/TO-220FP/TO-247 FDmesh™ POWER MOSFET (with FAST DIODE) TYPE STP20NM60FD STF20.
