W20NM60 Datasheet, Mosfet, ST Microelectronics

W20NM60 Features

• Mosfet Type STP20NM60 STP20NM60FP STB20NM60 STB20NM60-1 STW20NM60 VDSS 600V 600V 600V 600V 600V RDS(on) < 0.29Ω < 0.29Ω < 0.29Ω < 0.29Ω < 0.29Ω ID 20A 20A 20A 20A 20A
• High dv/dt

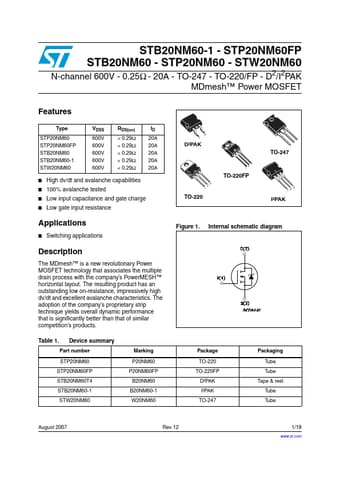

PDF File Details

Part number:

W20NM60

Manufacturer:

STMicroelectronics ↗

File Size:

437.01kb

Download:

📄 Datasheet

Description:

N-channel power mosfet. The MDmesh™ is a new revolutionary Power MOSFET technology that associates the multiple drain process with the company’s PowerMESH™ h

W20NM60 Application

• Applications
• Switching applications Description The MDmesh™ is a new revolutionary Power MOSFET technology that associates the multiple d
