W20NM50FD

STW20NM50FD

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part STMicroelectronics STW20NM50FD MOSFET N-CH 500V 20A TO247-3 DigiKey 340 510 units
$3.99

W20NM50FD Datasheet (203.60 KB)

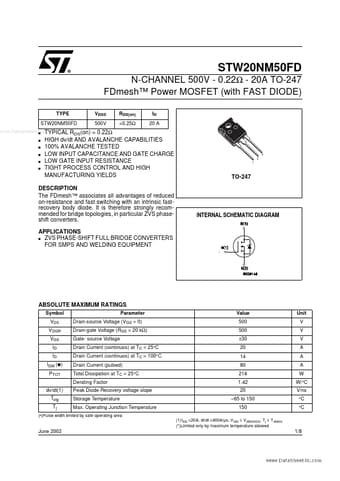

Preview of W20NM50FD PDF

Datasheet Details

Part number:

W20NM50FD

Manufacturer:

STMicroelectronics ↗

File Size:

203.60 KB

Description:

Stw20nm50fd.
N-CHANNEL 500V - 0.22Ω - 20A TO-247 FDmesh™ Power MOSFET (with FAST DIODE) TYPE STW20NM50FD www.DataSheet4U.com s TYPICAL s s s s s STW20NM50FD VDSS.

W20NM50FD General Description

The FDmesh™ associates all advantages of reduced on-resistance and fast switching with an intrinsic fastrecovery body diode. It is therefore strongly recommended for bridge topologies, in particular ZVS phaseshift converters. APPLICATIONS s ZVS PHASE-SHIFT FULL BRIDGE CONVERTERS FOR SMPS AND WELDING.
