2W005 GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER

2W005 Description

SEMI CONDUCTOR 2W005 THRU 2W10 GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER VOLTAGE 50 to 1000 Volts CURRENT 2.0 Amperes WOB .

2W005 Features

* Plastic material used carries Underwriters Laboratory recognition 94V-O
* Low leakage
* Surge overload rating
* 30 amperes peak
* Ideal for printed circuit board
* Exceeds environmental standards of MIL-S-19500/228
* Lead free in comply with E

📥 Download Datasheet

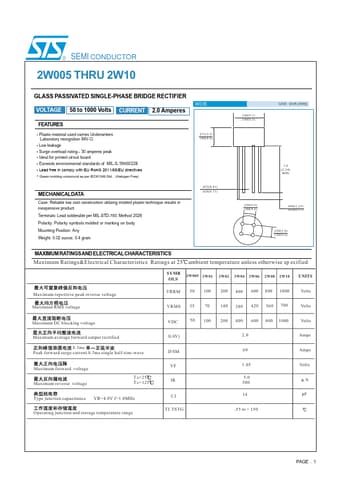

Preview of 2W005 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2W005
Manufacturer
STS
File Size
1.64 MB
Datasheet
2W005-STS.pdf
Description
GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
