2W04, 2W005 GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER

2W04 Description

SEMI CONDUCTOR 2W005 THRU 2W10 GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER VOLTAGE 50 to 1000 Volts CURRENT 2.0 Amperes WOB .

2W04 Features

* Plastic material used carries Underwriters Laboratory recognition 94V-O
* Low leakage
* Surge overload rating
* 30 amperes peak
* Ideal for printed circuit board
* Exceeds environmental standards of MIL-S-19500/228
* Lead free in comply with E

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 2W04, 2W005. Please refer to the document for exact specifications by model.

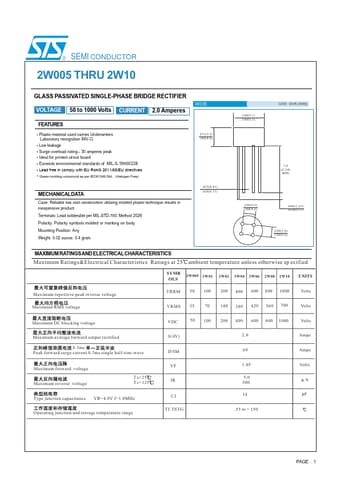

datasheet Preview Page 2

Datasheet Details

Part number
2W04, 2W005
Manufacturer
STS
File Size
1.64 MB
Datasheet
2W005-STS.pdf
Description
GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: 2W04, 2W005.
Please refer to the document for exact specifications by model.
