AZ5123-01F Datasheet, Suppressors, SXSEMI

AZ5123-01F Features

• Suppressors z Small Body Outline Dimensions z Low Body Height z Peak Power up to 150 Watts @ 8 x 20 μs Pulse z Low Leakage current z Response Time is Typically < 1 ns z ESD Rating of Class 3 (> 16

PDF File Details

Part number:

AZ5123-01F

Manufacturer:

SXSEMI

File Size:

217.32kb

Download:

📄 Datasheet

Description:

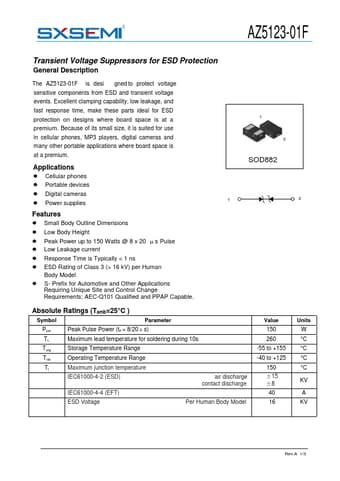

Transient voltage suppressors. The AZ5123-01F is desi gned to protect voltage sensitive components from ESD and transient voltage events. Excellent clamping capabi

AZ5123-01F Application

• Applications where board space is at a premium. Applications z Cellular phones z Portable devices z Digital cameras z Power supplies Features z Smal
