SPE0311

Single-Line ESD Protection Array

SPE0311 Features

* Transient protection for data lines to IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns)

* Protects single I/O lines

* Working voltage: 3.3V

* Low leakage current

* Low operating and clamping voltages PIN CONFIGURATION ( SOD-523 ) PART MARKING

SPE0311 General Description

The SPE0311 are designed by TVS device that is to protect sensitive electronics from damage or latch-up due to ESD. They are designed for use in applications where board space is at a premium. SPE0311 will protect single line, and may be used on line where the signal polarities swing above and below.

SPE0311 Datasheet (288.27 KB)

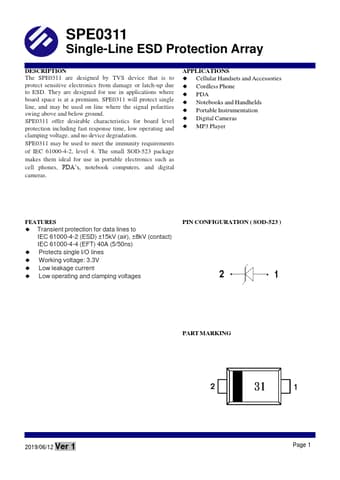

Preview of SPE0311 PDF

Datasheet Details

Part number:

SPE0311

Manufacturer:

SYNC POWER

File Size:

288.27 KB

Description:

Single-line esd protection array.
