SPE0332

2-Line ESD Protection Array

SPE0332 Features

* ESD protection of two lines

* Max. peak pulse power: Ppk = 350 W

* Low clamping voltage: VCL = 26 V

* Small SMD plastic package

* Ultra low leakage current: IRM < 90 nA

* ESD protection up to 23 kV

* IEC 61000-4-2, level 4 (ESD)

* IEC 61000-4-5 (surge); IPP = 15 A

SPE0332 General Description

The SPE0332 are designed by TVS bi-direction device that is to protect sensitive electronics from damage or latch-up due to ESD. They are designed for use in applications where board space is at a premium. SPE0332 will protect 2-line, and may be used on line where the signal polarities swing above a.

SPE0332 Datasheet (348.47 KB)

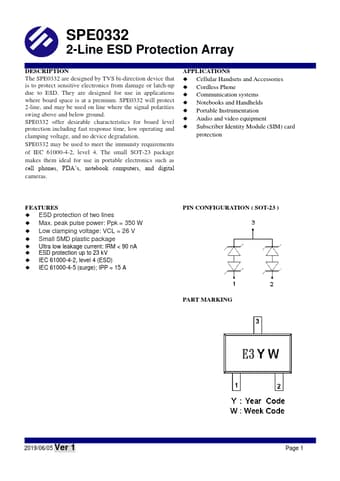

Preview of SPE0332 PDF

Datasheet Details

Part number:

SPE0332

Manufacturer:

SYNC POWER

File Size:

348.47 KB

Description:

2-line esd protection array.
