SPN1028 - Dual N-Channel MOSFET

SYNC POWER

📥 Download Datasheet

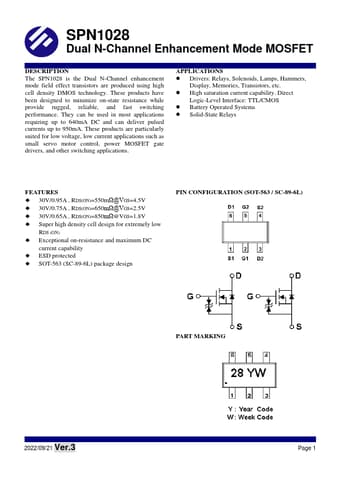

SPN1028 Datasheet Preview — Preview of SPN1028 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: SPN1028
Manufacturer: SYNC POWER
File Size: 380.77 KB
Datasheet: SPN1028-SYNCPOWER.pdf
Description: Dual N-Channel MOSFET

SPN1028 Product details

Description

The SPN1028 is the Dual N-Channel enhancement mode field effect transistors are produced using high cell density DMOS technology.

Features

30V/0.95A , RDS(ON)=550mΩ@VGS=4.5V.
30V/0.75A , RDS(ON)=650mΩ@VGS=2.5V.
30V/0.65A , RDS(ON)=850mΩ@VGS=1.8V.
Super high density cell design for extremely low RDS (ON).
Exceptional on-resistance and maximum DC current capability.
ESD protected.
SOT-563 (SC-89-6L) package design PIN.
