HX601 - Hall Effect Linear Sensor

Product Overview

Datasheet Details

Part number	HX601
Manufacturer	SZWKW
File Size	8.81 MB
Description	Hall Effect Linear Sensor
Datasheet	HX601 Datasheet

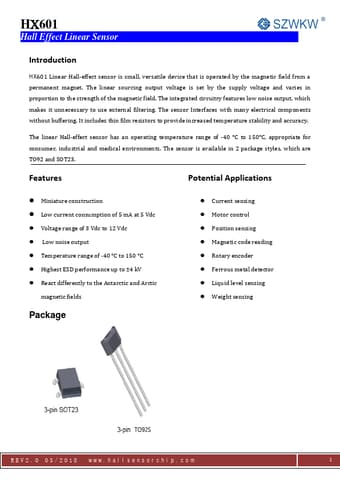

Additional preview pages of the HX601 datasheet.

Product details

Description

Name VDD GND Vout Pin number 1 2 3 Description Power supply Ground Output REV2.0 03/2018 www.hallsensorchip.com 4 HX601 Hall Effect Linear Sensor VOUT=1.0 to 2.5 V SOT23 （AH601SU） VOUT= 2.5 to 4 V SOT23 Pin description Name VDD GND Vout Pin number 1 2 3 Description Power supply Ground Output REV2.0 03/2018 www.hallsensorchip.com 5 HX601 Hall Effect Linear Sensor Typical characteristic data IDD (mA) 14 12 10 8 6 4 2 0 -50 IDD VS Temp 0 50 100 150 VDD=3V Temp.(°C) VDD=5V

Features

low noise output, which makes it unnecessary to use external filtering. The sensor Interfaces with many electrical components without buffering. It includes thin film resistors to provide increased temperature stability and accuracy. The linear Hall-effect sensor has an operating temperature range of -40 °C to 150°C, appropriate for consumer, industrial and medical environments. The sensor is available in 2 package styles, which are TO92 and SOT23. Features Potential.
