HX6038-NG - Advanced Linear Charge Management Controller

Datasheet Summary

Description

The HX6038-NG is a highly advanced complete constant-current/ constant voltage linear charger for cell lithium-ion batteries.

Its package and low external component count make the HX6038-NG ideally suited for portable applications.

Features

  • Preset 8.4V Charge Voltage with 1% Accuracy.
  • Programmable Charge Current Up to 1A.
  • Input Voltage: 9.2V ～ 13V.
  • Pre-Charging, the Charge Current is adjustable.
  • Ideal for Dual-Cell（8.4V）Li-Ion Batteries.
  • Constant -Current Charging, the Charge Current is adjustable.
  • Constant-Voltage Charging.
  • Constant-Current/Constant-Voltage Charging with Temperature Monitoring.
  • Automatic Recharge.
  • Double LEDs Charge Status Indication.
  • Available in SOP-8L Pack.

📥 Download Datasheet

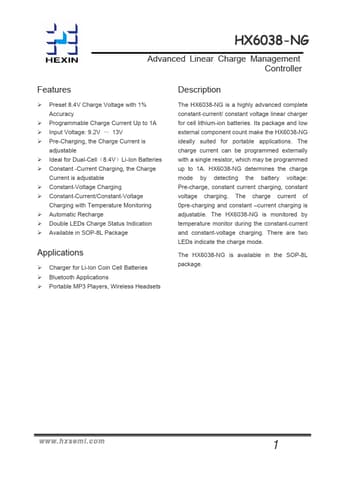

Datasheet preview – HX6038-NG

Datasheet Details

Part number HX6038-NG
Manufacturer Hexin Semiconductor
File Size 327.55 KB
Description Advanced Linear Charge Management Controller
Datasheet download datasheet HX6038-NG Datasheet
Additional preview pages of the HX6038-NG datasheet.

📁 Similar Datasheet

  • HX601 - Hall Effect Linear Sensor (SZWKW)
  • HX612 - 12 Channel Capacitive Touch Key Controller (AVIA Semiconductor)
  • HX6202-A090QAG - Service Manual (Haier)
  • HX6203 - Ultra-Low Dropout Linear Regulator (ETC)
  • HX6219 - Ultra-Fast CMOS LDO Regulator (HXDZ)
  • HX6228 - 128K x 8 STATIC RAM-SOI HX6228 (Honeywell)
  • HX6256 - 32K x 8 Static RAM (Honeywell)
  • HX6306 - 300mA Low Power LDO (HXDZ)
  • HX6356 - 32K x 8 STATIC RAM-SOI (Honeywell)
  • HX6408 - 512k x 8 STATIC RAM (Honeywell)
Other Datasheets by Hexin Semiconductor
  • HX6001 - Standalone Linear Li-Lon Battery Charger
  • HX6014 - Linear Li-Lon Battery Charger
  • HX6017 - High Accuracy Linear Li-Lon Battery Charger
  • HX6202 - Standalone Li-Lon Switch Mode Battery Charger

Full PDF Text Transcription

Click to expand full text
HX60H3X81-0N0G1 Advanced Linear Charge Management Controller Features  Preset 8.4V Charge Voltage with 1% Accuracy  Programmable Charge Current Up to 1A  Input Voltage: 9.2V ～ 13V  Pre-Charging, the Charge Current is adjustable  Ideal for Dual-Cell（8.4V）Li-Ion Batteries  Constant -Current Charging, the Charge Current is adjustable  Constant-Voltage Charging  Constant-Current/Constant-Voltage Charging with Temperature Monitoring  Automatic Recharge  Double LEDs Charge Status Indication  Available in SOP-8L Package Applications  Charger for Li-Ion Coin Cell Batteries  Bluetooth Applications  Portable MP3 Players, Wireless Headsets Description The HX6038-NG is a highly advanced complete constant-current/ constant voltage linear charger for cell lithium-ion batteries.
