HX6014 - Linear Li-Lon Battery Charger

Datasheet Summary

Description

The HX6014 is a complete constantcurrent/constant voltage linear charger for single cell lithium-ion batteries.

Its package and low external component count make the HX6014 ideally suited for portable applications.

Features

  • Programmable Charge Current up to 800mA.
  • No MOSFET, Sense Resistor or Blocking Diode Required.
  • Constant-Current/Constant-Voltage Operation with Thermal Regulation to Maximize Charge Rate.
  • Without Risk of Overheating.
  • Charges Single Cell Li-Ion Batteries Directly from USB Port.
  • Preset 4.2V Charge Voltage with 　1% Accuracy.
  • Automatic Recharge.
  • 2.9V Trickle Charge Threshold.
  • Available in DFN3.
  • 3-10L Package.

📥 Download Datasheet

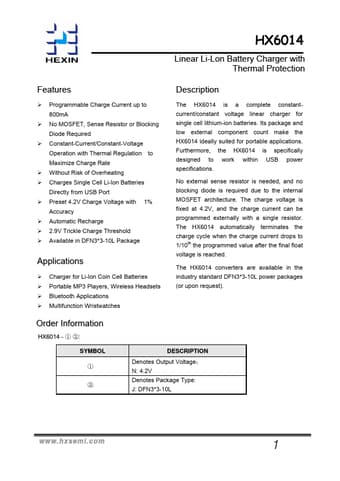

Datasheet preview – HX6014

Datasheet Details

Part number HX6014
Manufacturer Hexin Semiconductor
File Size 210.44 KB
Description Linear Li-Lon Battery Charger
Datasheet download datasheet HX6014 Datasheet
Additional preview pages of the HX6014 datasheet.
