VCS758 Datasheet - SZWKW

VCS758 Wide temperature range-large range current sensor

Wide temperature range-large range current sensor Characteristic： Isolation measurement, isolation withstand voltage up to 5kv@50HZ, 1min can measure ±50~±280A AC and DC current 3.3V/5V power supply PFF package Extremely low current lead impedance: 1mΩ Response time as low as 4uS Wide operating temperature range: -40~125°C/-55~ 125°C for selection High accuracy: <1% accuracy error at normal temperature Accuracy error <3% in the whole temperature range Strong d.

VCS758 Datasheet (1.00 MB)

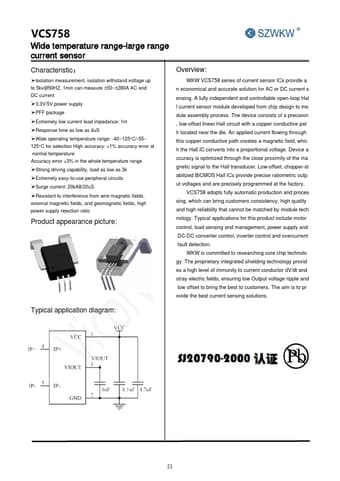

Preview of VCS758 PDF

Datasheet Details

Part number:

VCS758

Manufacturer:

SZWKW

File Size:

1.00 MB

Description:

Wide temperature range-large range current sensor.
