STM6930A Datasheet (SamHop Microelectronics) - Dual N-Channel E nhancement Mode Field Effect Transistor

STM6930A, Dual N-Channel E nhancement Mode Field Effect Transistor

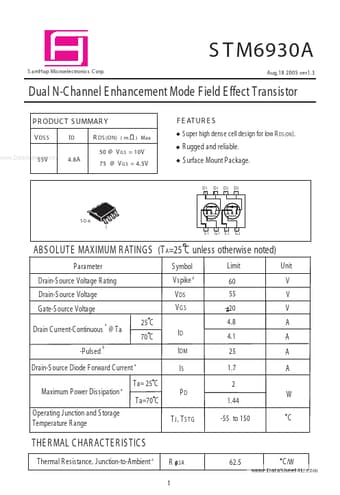

S T M6930A S amHop Microelectronics C orp.

Aug,18 2005 ver1.3 Dual N-C hannel E nhancement Mode Field E ffect Transistor P R ODUC T S UMMAR Y V DS S www.DataSheet4U.com 55V F E AT UR E S ( m W ) Max ID 4.8A R DS (ON) S uper high dense cell design for low R DS (ON ).

50 @ V G S = 10V 75 @ V G S = 4.5V R ugged and reliable.

S urface Mount P ackage.

D1 8 D1 7 D2 6 D2 5 S O-8 1 1 2 3 4 S1 G1 S 2 G2 ABS OLUTE MAXIMUM R ATINGS (T A=25 C unless otherwise noted) P arameter Drain-S ource
