STM8820 - Dual N-Channel MOSFET

Product Overview

SamHop Microelectronics

📥 Download Datasheet

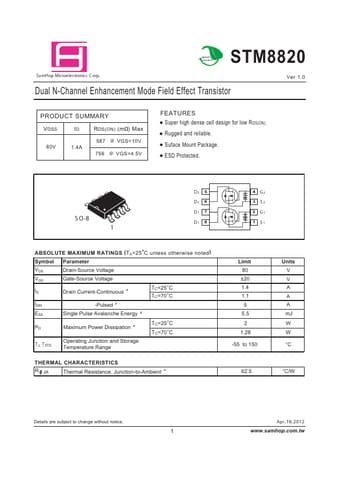

STM8820 Dual N-Channel MOSFET by SamHop Microelectronics - Datasheet Preview — Datasheet preview – STM8820

Datasheet Details

Part number	STM8820
Manufacturer	SamHop Microelectronics
File Size	100.25 KB
Description	Dual N-Channel MOSFET
Datasheet	STM8820 Datasheet
Additional preview pages of the STM8820 datasheet.

Product details

Features

Super high dense cell design for low R DS(ON). Rugged and reliable. Suface Mount Package. ESD Protected. ID 1.4A R DS(ON) (m ) Max 587 @ VGS=10V 756 @ VGS=4.5V D2 D2 D1 5 6 7 8 4 3 2 1 G2 S2 G1 S1 S O-8 1 D1.
