SDM8401 - Dual Enhancement Mode Field Effect Transistor

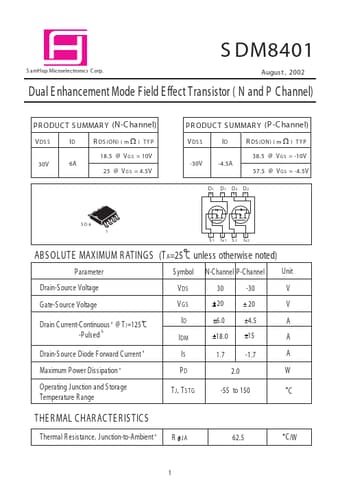

S DM8401 S amHop Microelectronics C orp. Augus t , 2002 Dual E nhancement Mode Field E ffect Transistor ( N and P Channel) P R ODUC T S UMMAR Y (N-C hannel) VDS S ID R DS (ON) ( m W ) TYP 30V 6A 18.5 @ VGS = 10V 25 @ VGS = 4.5V P R ODUC T S UMMAR Y (P -C hannel) VDS S ID R DS (ON) ( m W ) TYP -30V -4.5A 38.5 @ VGS = -10V 57.5 @ VGS = -4.5V D1 D1 D2 D2 87 65 S O-8 1 1234 S1 G1 S2 G2 ABS OLUTE MAXIMUM R ATINGS (TA=25 C unless otherwise noted) P arameter S ymbol N-C hannel P-C .

SDM8401-SamHop.pdf

SDM8401 Datasheet Preview — Preview of SDM8401 PDF

Datasheet Details

Part number:

SDM8401

Manufacturer:

SamHop

File Size:

0.98 MB

Description:

Dual enhancement mode field effect transistor.

SDM8401 Distributor

📁 Related Datasheet

SDM862 SDM863 SDM872 SDM873 SDM-08060 SDM-08060-B1F

📌 All Tags

SDM8401 Dual Enhancement Mode Field Effect Transistor SamHop
