SA9605A THREE PHASE POWER/ENERGY METERING IC WITH INSTANTANEOUS PULSE OUTPUT

The SAMES SA9605A is an enhancement of the SA9105E and SA9105F, as no external capacitors are needed for the A/D converters. The SAMES SA9605A Three Phase Power/ Energy metering integrated circuit generates a pulse rate output, the frequency of which 1 20 IIP2 is proportional to the absolute power c.

SA9605A Features

* n Functionally similar to the SA9105E and SA9105F, with reduced number of external components n Output frequency represents the absolute sum of energy on all three phases n Performs one, two or three phase power and energy measurement n Meets the IEC 521/1036 Specification requirements for Class 1 A

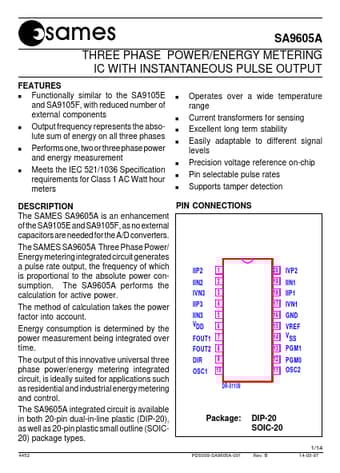

SA9605A Datasheet (107.28 KB)

SA9605A Datasheet Preview — Preview of SA9605A PDF

Datasheet Details

Part number:

SA9605A

Manufacturer:

Sames

File Size:

107.28 KB

Description:

Three phase power/energy metering ic with instantaneous pulse output.
