KFG1G16Q2C - 1Gb OneNAND C-die

Product Overview

Samsung Electronics

Datasheet Details

Part number	KFG1G16Q2C
Manufacturer	Samsung Electronics
File Size	2.37 MB
Description	1Gb OneNAND C-die
Datasheet	KFG1G16Q2C Datasheet

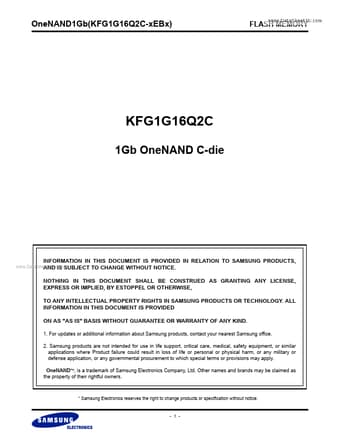

Additional preview pages of the KFG1G16Q2C datasheet.

Product details

Description

2.1 Detailed Product Description The OneNAND is an advanced generation, high-performance NAND-based Flash memory.FLASH MEMORY It integrates on-chip a single-level-cell (SLC) NAND Flash Array memory with two independent data buffers, boot RAM buffer, a page buffer for the Flash array, and a one-time-programmable block.The combination of these memory areas enable high-speed pipelining of reads from host, BufferRAM, Page Buffer, and NAND Flash Array.Clock speeds up to 66MHz / 83MHz with a x16

Features

revised. 4. Chapter 3.3.1 Cold Reset Mode Operation revised. 5. Chapter 6.15 Cold Reset Timing revised. 1. Corrected errata. 2. Chapter 2.8.18 Command Register F220h (R/W) revised. 3. Chpater 3.4.3 NAND Array Write Protection States revised. 4. Chapter 3.4.3.1 Unlocked NAND Array Write Protection State revised. 5. Chapter 3.4.3.3 Locked-tight NAND Array Write Protection State revised. 6. Chapter 3.4.4 All Block Unlock Flow Diagram revised. 7. Chapter 3.13.3 Multi-Block Erase Verify Read Operatio.
