M53230224CE2

(M53230224CE2/CJ2) DRAM Module

Samsung Semiconductor

M53230224CE2 Features

* Part Identification - M53230224CE2-C(1024 cycles/16ms Ref, SOJ, Solder) - M53230224CJ2-C(1024 cycles/16ms Ref, SOJ, Gold)

* Extended Data Out

* CAS-before-RAS refresh capability

* RAS-only and Hidden refresh capability

* TTL compatible inputs and outputs

M53230224CE2 General Description

The Samsung M53230224D is a 2Mx32bits Dynamic RAM high density memory module. The Samsung M53230224D consists of four CMOS 1Mx16bits DRAMs in 42-pin SOJ package mounted on a 72-pin glass-epoxy substrate. A 0.1 or 0.22uF decoupling capacitor is mounted on the printed circuit board for each DRAM. The .

M53230224CE2 Datasheet (448.13 KB)

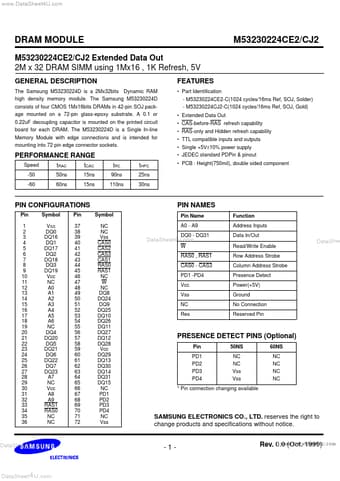

M53230224CE2 Datasheet Preview — Preview of M53230224CE2 PDF

Datasheet Details

Part number:

M53230224CE2

Manufacturer:

Samsung Semiconductor

File Size:

448.13 KB

Description:

(m53230224ce2/cj2) dram module.
