M53230400CW0, M53230400CB0 Datasheet - Samsung Semiconductor

M53230400CW0 (M532304x0CB0/CW0) DRAM Module

The Samsung M5323040(1)0C is a 4Mx32bits Dynamic RAM high density memory module. The Samsung M5323040(1)0C consists of eight CMOS 4Mx4bits DRAMs in 24-pin SOJ package mounted on a 72-pin glass-epoxy substrate. A 0.1 or 0.22uF decoupling capacitor is mounted on the printed circuit board for each DRAM.

M53230400CW0 Features

* Part Identification - M53230400CW0-C(4096 cycles/64ms Ref, SOJ, Solder) - M53230400CB0-C(4096 cycles/64ms Ref, SOJ, Gold) - M53230410CW0-C(2048 cycles/32ms Ref, SOJ, Solder) - M53230410CB0-C(2048 cycles/32ms Ref, SOJ, Gold)

* Extended Data Out

* CAS-before-RAS refresh capab

M53230400CB0_SamsungSemiconductor.pdf

This datasheet PDF includes multiple part numbers: M53230400CW0, M53230400CB0. Please refer to the document for exact specifications by model.

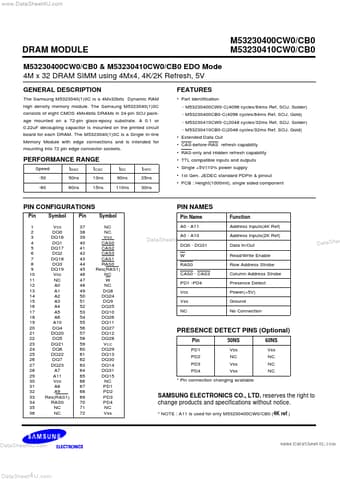

M53230400CW0 Datasheet Preview Page 2 M53230400CW0 Datasheet Preview Page 3

Datasheet Details

Part number:

M53230400CW0, M53230400CB0

Manufacturer:

Samsung Semiconductor

File Size:

416.87 KB

Description:

(m532304x0cb0/cw0) dram module.

Note:

This datasheet PDF includes multiple part numbers: M53230400CW0, M53230400CB0.
Please refer to the document for exact specifications by model.
