K4Y50024UC (K4Y50024UC - K4Y50164UC) 512Mbit XDR TM DRAM

The timing diagrams in Figure 1 illustrate XDR DRAM device write and read transactions. There are three sets of pins used for normal memory access transactions: CFM/CFMN clock pins, RQ11..0 request pins, and DQ15..0/DQN15..0 data pins. The “N” appended to a signal name denotes the complementary sign.

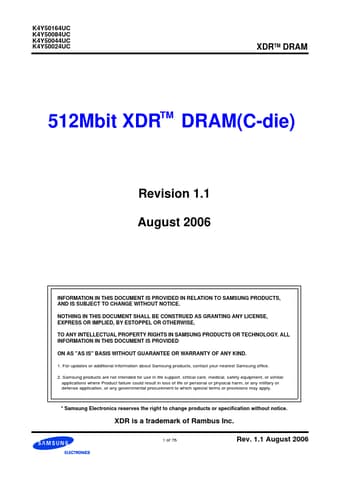

www.DataSheet4U.com K4Y50164UC K4Y50084UC K4Y50044UC K4Y50024UC XDRTM DRAM 512Mbit XDR TM DRAM(C-die) Revision 1.1 August 2006 INFORMATION IN THIS DOCUMENT IS PROVIDED IN RELATION TO SAMSUNG PRODUCTS, AND IS SUBJECT TO CHANGE WITHOUT NOTICE. NOTHING IN THIS DOCUMENT SHALL BE CONSTRUED AS GRANTING ANY LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE, TO ANY INTELLECTUAL PROPERTY RIGHTS IN SAMSUNG PRODUCTS OR TECHNOLOGY. ALL INFORMATION IN THIS DOCUMENT IS PROVIDED ON AS "AS IS" BASIS .

K4Y50024UC Features

* Highest pin bandwidth available - 4000/3200/2400 Mb/s Octal Data Rate(ODR) Signaling

* Bi-directional differential RSL(DRSL) - Flexible read/write bandwidth allocation - Minimum pin count

* On-chip termination - Adaptive impedance matching - Reduced system cost and routing

K4Y50024UC Datasheet (3.39 MB)

K4Y50024UC Datasheet Preview — Preview of K4Y50024UC PDF

Datasheet Details

Part number:

K4Y50024UC

Manufacturer:

Samsung semiconductor

File Size:

3.39 MB

Description:

(k4y50024uc - k4y50164uc) 512mbit xdr tm dram.
