KM68257CL 32Kx8 Bit High Speed Static RAM

The KM68257C is a 262,144-bit high-speed Static Random Access Memory organized as 32,768 words by 8 bits. The KM68257C uses 8 common input and output lines and has an output enable pin which operates faster than address access time at read cycle. The device is fabricated using SAMSUNG's advanced CMO.

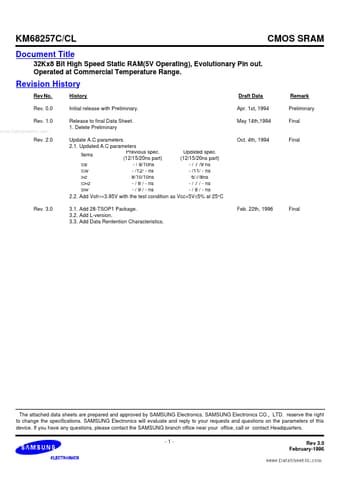

KM68257C/CL Document Title PRELIMINARY CMOS SRAM 32Kx8 Bit High Speed Static RAM(5V Operating), Evolutionary Pin out. Operated at Commercial Temperature Range. Revision History Rev No. Rev. 0.0 Rev. 1.0 www.DataSheet4U.com History Initial release with Preliminary. Release to final Data Sheet. 1. Delete Preliminary Update A.C parameters 2.1. Updated A.C parameters Previous spec. Updated spec. Items (12/15/20ns part) (12/15/20ns part) tOE - / 8/10ns - / 7 /9 ns tCW - /12/ - ns - /11/ - ns tHZ .

KM68257CL Features

* Fast Access Time 12, 15, 20

* À(Max.) Low Power Dissipation Standby (TTL) : 40

* Ì(Max.) (CMOS) : 2

* Ì(Max.) 0.1

* Ì(Max.)- L-ver. only Operating KM68257C/CL - 12 : 165

* Ì(Max.) KM68257C/CL - 15 : 150

* Ì(Max.) KM68257C/CL - 20 : 140

* Ì(Max.) www.DataSheet4U.com Single 5.0V±10% Powe

KM68257CL Datasheet (162.36 KB)

KM68257CL Datasheet Preview — Preview of KM68257CL PDF

Datasheet Details

Part number:

KM68257CL

Manufacturer:

Samsung semiconductor

File Size:

162.36 KB

Description:

32kx8 bit high speed static ram.
