KM684000B

512Kx8 bit Low Power CMOS Static RAM

KM684000B Features

* Process Technology: TFT

* Organization: 512Kx8

* Power Supply Voltage: 4.5~5.5V

* Low Data Retention Voltage: 2V(Min)

* Three state output and TTL Compatible

* Package Type: 32-DIP-600, 32-SOP-525 32-TSOP2-400F/R CMOS SRAM GENERAL DESCRIPTION The KM

KM684000B General Description

The KM684000B families are fabricated by SAMSUNG′s advanced CMOS process technology. The families support various operating temperature ranges and various package types for user flexibility of system design. The family also support low data retention voltage for battery back-up operation with low da.

KM684000B Datasheet (171.27 KB)

Preview of KM684000B PDF

Datasheet Details

Part number:

KM684000B

Manufacturer:

Samsung

File Size:

171.27 KB

Description:

512kx8 bit low power cmos static ram.

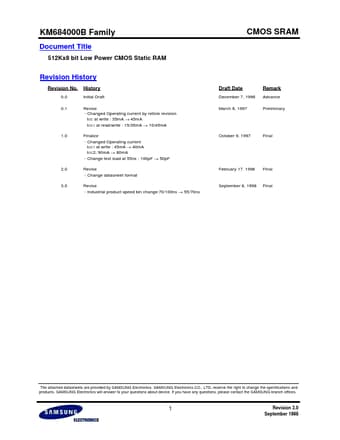

KM684000B Family Document Title 512Kx8 bit Low Power CMOS Static RAM CMOS SRAM Revision History Revision No. 0.0 0.1 History Initial Draft Revise -.
