KM681002A Datasheet - Samsung semiconductor

KM681002A 128Kx8 High Speed Static RAM

The KM681002A is a 1,048,576-bit high-speed Static Random Access Memory organized as 131,072 words by 8 bits. The KM681002A uses 8 common input and output lines and has an output enable pin which operates faster than address access time at read cycle. The device is fabricated using Samsung′s advance.

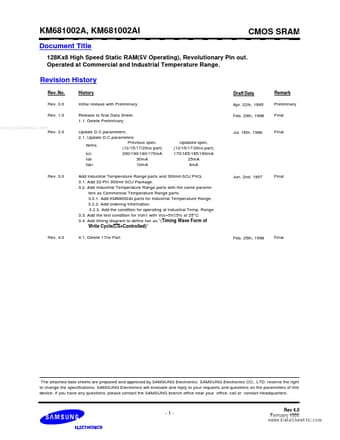

PRELIMINARY KM681002A, KM681002AI Document Title 128Kx8 High Speed Static RAM(5V Operating), Revolutionary Pin out. Operated at Commercial and Industrial Temperature Range. CMOS SRAM Revision History Rev. No. Rev. 0.0 Rev. 1.0 History Initial release with Preliminary. Release to final Data Sheet. 1.1. Delete Preliminary Update D.C parameters. 2.1. Update D.C parameters Previous spec. Items (12/15/17/20ns part) Icc 200/190/180/170mA Isb 30mA Isb1 10mA Draft Data Apr. 22th, 1995 Feb. 29th, 1996 .

KM681002A Features

* Fast Access Time 12, 15, 20ns(Max.)

* Low Power Dissipation Standby (TTL) : 25mA(Max.) (CMOS) : 8mA(Max.) Operating KM681002A - 12 : 170mA(Max.) KM681002A - 15 : 165mA(Max.) KM681002A - 20 : 160mA(Max.)

* Single 5.0V±10% Power Supply

* TTL Compatible Inputs and Outp
