KM684002A

512Kx8 Bit High Speed Static RAM

KM684002A Features

* Fast Access Time 15,17,20ns(Max.)

* Low Power Dissipation Standby (TTL) : 50mA(Max.) (CMOS) : 10mA(Max.) Operating KM684002A - 15 : 170mA(Max.) KM684002A - 17 : 165mA(Max.) KM684002A - 20 : 160mA(Max.)

* Single 5.0V±10% Power Supply

* TTL Compatible Inputs and Outpu

KM684002A General Description

The KM684002A is a 4,194,304-bit high-speed Static Random Access Memory organized as 524,288 words by 8 bits. The KM684002A uses 8 common input and output lines and has an output enable pin which operates faster than address access time at read cycle. The device is fabricated using SAMSUNG′s advance.

KM684002A Datasheet (124.86 KB)

Preview of KM684002A PDF

Datasheet Details

Part number:

KM684002A

Manufacturer:

Samsung

File Size:

124.86 KB

Description:

512kx8 bit high speed static ram.

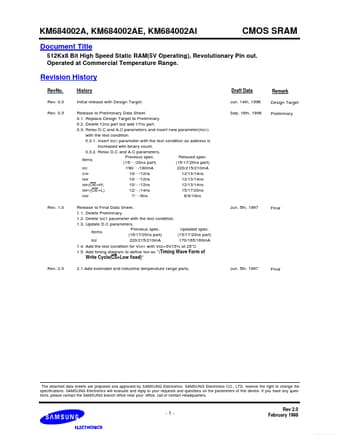

PRELIMINARY KM684002A, KM684002AE, KM684002AI Document Title 512Kx8 Bit High Speed Static RAM(5V Operating), Revolutionary Pin out. Operated at Commer.
