KM684002I, KM684002 - 512Kx8 Bit High Speed Static RAM

KM684002I Description

KM684002, KM684002E, KM684002I Document Title PRELIMINARY CMOS SRAM 512Kx8 Bit High Speed Static RAM(5V Operating), Revolutionary Pin out.Operated .
The KM684002 is a 4,194,304-bit high-speed Static Random Access Memory organized as 524,288 words by 8 bits.

KM684002I Applications

* The KM684002 is packaged in a 400 mil 36-pin plastic SOJ. ¡Ü ¡Ü ¡Ü ¡Ü ¡Ü ¡Ü ¡Ü Fast Access Time 17,20,25
* À(Max. ) Low Power Dissipation Standby (TTL) : 60
* Ì(Max. ) (CMOS) : 10
* Ì(Max. ) Operating KM684002 - 17 : 180
* Ì(Max. ) KM684002 - 20 : 170
* Ì(Max. ) KM684002 - 25 : 160

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: KM684002I, KM684002. Please refer to the document for exact specifications by model.

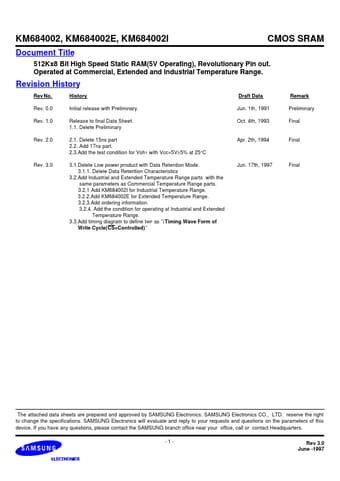

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KM684002I, KM684002
Manufacturer
Samsung
File Size
149.56 KB
Datasheet
KM684002_Samsung.pdf
Description
512Kx8 Bit High Speed Static RAM
Note
This datasheet PDF includes multiple part numbers: KM684002I, KM684002.
Please refer to the document for exact specifications by model.
