KM681000E

128Kx8 bit Low Power CMOS Static RAM

KM681000E Features

* Process Technology: TFT

* Organization: 128Kx8

* Power Supply Voltage: 4.5~5.5V

* Low Data Retention Voltage: 2V(Min)

* Three state output and TTL Compatible

* Package Type: 32-DIP-600, 32-SOP-525, 32-TSOP1-0820F CMOS SRAM GENERAL DESCRIPTION The KM

KM681000E General Description

The KM681000E families are fabricated by SAMSUNG′s advanced CMOS process technology. The families support various operating temperature ranges and have various package types for user flexibility of system design. The families also support low data retention voltage for battery back-up operation with.

KM681000E Datasheet (157.26 KB)

Preview of KM681000E PDF

Datasheet Details

Part number:

KM681000E

Manufacturer:

Samsung semiconductor

File Size:

157.26 KB

Description:

128kx8 bit low power cmos static ram.

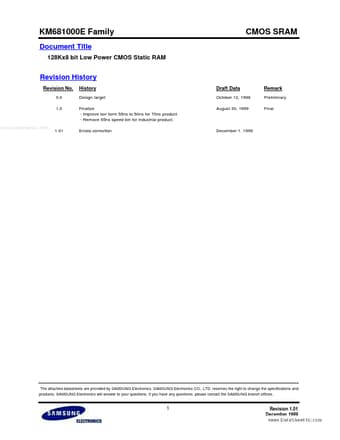

KM681000E Family Document Title 128Kx8 bit Low Power CMOS Static RAM CMOS SRAM Revision History Revision No. 0.0 1.0 History Design target Finalize.
