KM681002B, 128Kx8 Bit High Speed Static RAM

PRELIMINARY KM681002B, KM681002BI Document Title 128Kx8 Bit High Speed Static RAM(5V Operating), Revolutionary Pin out.Operated at Commercial and Ind.
The KM681002B is a 1,048,576-bit high-speed Static Random Access Memory organized as 131,072 words by 8 bits.

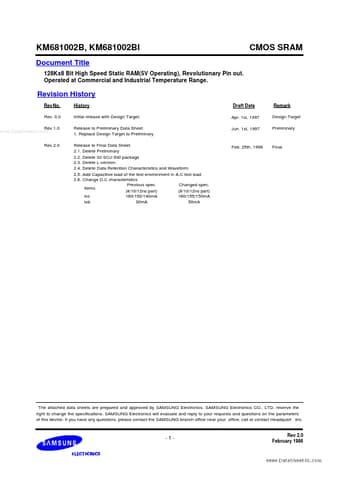

datasheet Preview Page 1 from Datasheet4u.com

KM681002B_Samsungsemiconductor.pdf

KM681002B Datasheet Preview — Preview of KM681002B PDF

Datasheet Details

Part number:

KM681002B

Manufacturer:

Samsung semiconductor

File Size:

152.38 KB

Description:

128Kx8 Bit High Speed Static RAM

Features

* Fast Access Time 8,10,12ns(Max. )
* Low Power Dissipation Standby (TTL) : 50 mA(Max. ) (CMOS) : 10 mA(Max. ) Operating KM681002B - 8 : 160 mA(Max. ) KM681002B - 10 : 155 mA(Max. ) KM681002B - 12 : 150 mA(Max. )
* Single 5.0V ± 10% Power Supply
* TTL Compatible Inputs and

Applications

* The KM681002B is packaged in a 400mil 32-pin plastic SOJ or TSOP2 forward. ORDERING INFORMATION KM681002B -8/10/12 KM681002BI -8/10/12 Commercial Temp. Industrial Temp. PIN CONFIGURATION (Top View) A0 1 2 3 4 5 6 7 8 9 32 A16 31 A15 30 A14 29 A13 28 OE 27 I/O8 26 I/O7 FUNCTIONAL BLOCK DIAGRAM
