KM681002C, 128Kx8 Bit High-Speed CMOS Static RAM

PRELIMINARY KM681002C/CL, KM681002CI/CLI Document Title 128Kx8 Bit High-Speed CMOS Static RAM(5V Operating).Operated at Commercial and Industrial Tem.
The KM681002C is a 1,048,576-bit high-speed Static Random Access Memory organized as 131,072 words by 8 bits.

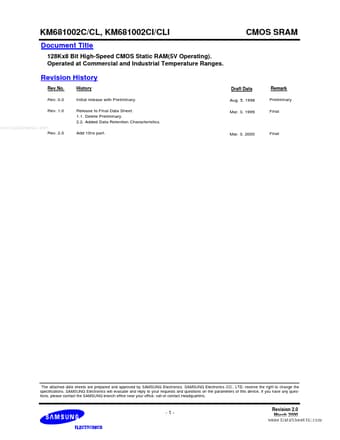

datasheet Preview Page 1 from Datasheet4u.com

KM681002C_Samsungsemiconductor.pdf

KM681002C Datasheet Preview — Preview of KM681002C PDF

Datasheet Details

Part number:

KM681002C

Manufacturer:

Samsung semiconductor

File Size:

176.29 KB

Description:

128Kx8 Bit High-Speed CMOS Static RAM

Features

* Fast Access Time 10,12,15,20ns(Max. )
* Low Power Dissipation Standby (TTL) : 30mA(Max. ) (CMOS) : 5mA(Max. ) 0.5mA(Max. ) L-ver. only Operating KM681002C/CL-10 : 80mA(Max. ) KM681002C/CL-12 : 75mA(Max. ) KM681002C/CL-15 : 73mA(Max. ) KM681002C/CL-20 : 70mA(Max. )
* Single 5.0V±10%

Applications

* The KM681002C is packaged in a 400mil 32-pin plastic SOJ or TSOP2 forward. 128K x 8 Bit High-Speed CMOS Static RAM(5.0V Operating) ORDERING INFORMATION KM681002C/CL-10/12/15/20 KM681002CI/CLI-10/12/15/20 Commercial Temp. Industrial Temp. PIN CONFIGURATION(Top View) A0 1 2 3 4 5 6 7 8 9 32 A16
