KM681002CLI

128Kx8 Bit High-Speed CMOS Static RAM

KM681002CLI Features

* Fast Access Time 10,12,15,20ns(Max.)

* Low Power Dissipation Standby (TTL) : 30mA(Max.) (CMOS) : 5mA(Max.) 0.5mA(Max.) L-ver. only Operating KM681002C/CL-10 : 80mA(Max.) KM681002C/CL-12 : 75mA(Max.) KM681002C/CL-15 : 73mA(Max.) KM681002C/CL-20 : 70mA(Max.)

* Single 5.0V±10%

KM681002CLI General Description

The KM681002C is a 1,048,576-bit high-speed Static Random Access Memory organized as 131,072 words by 8 bits. The KM681002C uses 8 common input and output lines and has an output enable pin which operates faster than address access time at read cycle. The device is fabricated using SAMSUNG′s advance.

KM681002CLI Datasheet (176.29 KB)

Preview of KM681002CLI PDF

Datasheet Details

Part number:

KM681002CLI

Manufacturer:

Samsung semiconductor

File Size:

176.29 KB

Description:

128kx8 bit high-speed cmos static ram.

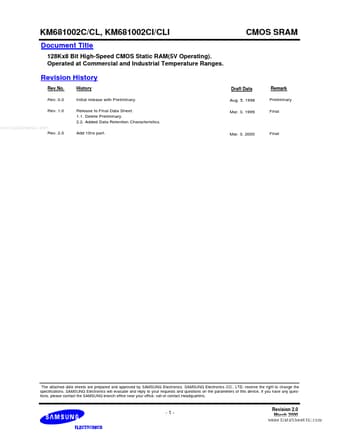

PRELIMINARY KM681002C/CL, KM681002CI/CLI Document Title 128Kx8 Bit High-Speed CMOS Static RAM(5V Operating). Operated at Commercial and Industrial Tem.
