KM684002AE, KM684002A - 512Kx8 Bit High Speed Static RAM

KM684002AE Description

PRELIMINARY KM684002A, KM684002AE, KM684002AI Document Title 512Kx8 Bit High Speed Static RAM(5V Operating), Revolutionary Pin out.Operated at Commer.
The KM684002A is a 4,194,304-bit high-speed Static Random Access Memory organized as 524,288 words by 8 bits.

KM684002AE Features

* Fast Access Time 15,17,20ns(Max. )
* Low Power Dissipation Standby (TTL) : 50mA(Max. ) (CMOS) : 10mA(Max. ) Operating KM684002A - 15 : 170mA(Max. ) KM684002A - 17 : 165mA(Max. ) KM684002A - 20 : 160mA(Max. )
* Single 5.0V±10% Power Supply
* TTL Compatible Inputs and Outpu

KM684002AE Applications

* The KM684002A is packaged in a 400mil 36-pin plastic SOJ. PIN CONFIGURATION(Top View) A0 A1 1 2 3 4 5 6 7 8 9 10 36 N. C 35 A18 34 A17 33 A16 32 A15 31 OE 30 I/O8 ORDERING INFORMATION KM684002A-15/17/20 KM684002AE-15/17/20 KM684002AI-15/17/20 Commercial Temp. Extended Temp. Industrial Temp. A2

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: KM684002AE, KM684002A. Please refer to the document for exact specifications by model.

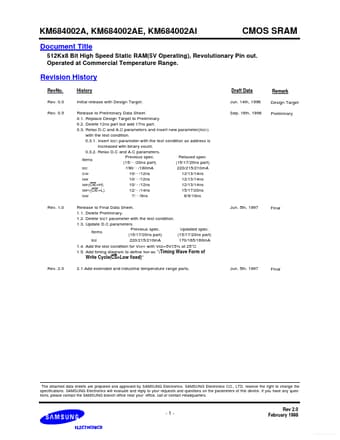

datasheet Preview Page 2 datasheet Preview Page 3
