KS0073, 34COM/60SEG DRIVER & CONTROLLER FOR DOT MATRIX LCD

34COM/60SEG DRIVER & CONTROLLER FOR DOT MATRIX LCD S6A0073 INTRODUCTION S6A0073 is a dot matrix LCD driver & controller LSI which is fabricated by l.
Pin (No) VDD(35) VSS1, VSS2 (46, 61) V1-V5 (68 - 64) Vci (58) I Power supply I/O Name 0V (GND) Bias voltage level for LCD driving Input voltage to the.

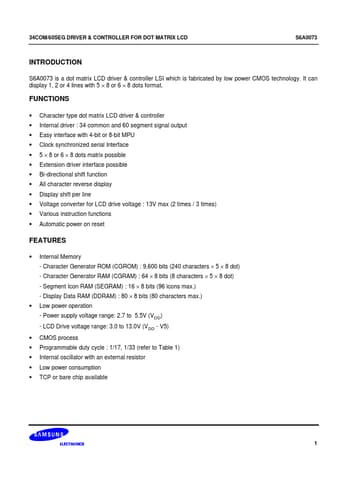

datasheet Preview Page 1 from Datasheet4u.com

KS0073_Samsungsemiconductor.pdf

KS0073 Datasheet Preview — Preview of KS0073 PDF

Datasheet Details

Part number:

KS0073

Manufacturer:

Samsung semiconductor

File Size:

923.89 KB

Description:

34COM/60SEG DRIVER & CONTROLLER FOR DOT MATRIX LCD

Features

* Internal Memory - Character Generator ROM (CGROM) : 9,600 bits (240 characters × 5 × 8 dot) - Character Generator RAM (CGRAM) : 64 × 8 bits (8 characters × 5 × 8 dot) - Segment Icon RAM (SEGRAM) : 16 × 8 bits (96 icons max. ) - Display Data RAM (DDRAM) : 80 × 8 bits (80 characters max. )
