KS0074 Datasheet, Lcd, Samsung semiconductor

KS0074 Features

  • Lcd  Internal Memory - Character Generator ROM (CGROM) : 9,600 bits (240 characters x 5 x 8 dot) - Character Generator RAM (CGRAM) : 64 x 8 bits (8 characters x 5 x 8 dot) - Segment Icon R

PDF File Details

Part number:

KS0074

Manufacturer:

Samsung semiconductor

File Size:

537.28kb

Download:

📄 Datasheet

Description:

34com/80seg driver & controller for dot matrix lcd. PAD (NO) INPUT/ OUTPUT VDD (43) VSS1,VSS2 (49,64) V1-V5 (71-67) Vci (61) SEG1-SEG80 (89-143, (1-25) COM0-COM33 (72-88, 26-42) OSC1,OS

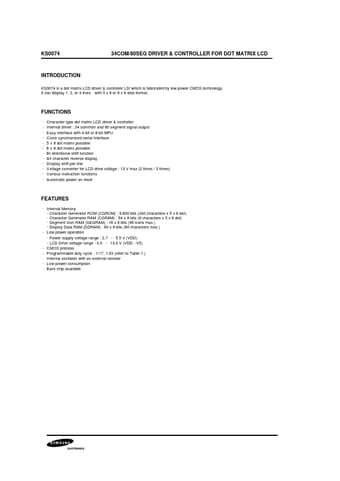

Datasheet Preview: KS0074 📥 Download PDF (537.28kb)
