KS0071B - 32COM/60SEG DRIVER & CONTROLLER

KS0071B Description

KS0071B 32COM/60SEG DRIVER & CONTROLLER FOR DOT MATRIX LCD INTRODUCTION The KS0071B is a dot matrix LCD controller & driver LSI which is fabricated .

KS0071B Features

* Character type dot matrix single chip LCD controller & driver
* High voltage LCD driver 32 common and 60 segment signal output.
* Easy interface with a 4 bit or 8 bit MPU.
* Internal memory -. Character generator ROM : 8400bits ( 240 characters for 57 dots ) -. Cha

📥 Download Datasheet

Preview of KS0071B PDF

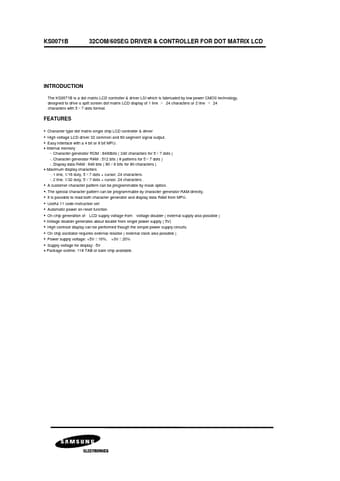

datasheet Preview Page 2 datasheet Preview Page 3
