KS0076B 16COM/40SEG DRIVER & CONTROLLER

KS0076B 16COM/40SEG DRIVER & CONTROLLER FOR DOT MATRIX LCD INTRODUCTION The KS0076B is a dot matrix LCD driver & controller LSl which is fabricated by low power CMOS technology. FUNCTION Character type dot matrix LCD driver & controller Internal driver: 16 common and 40 segment signal output. Display character format; 5 x 7 dot + cursor, 5 x 10 dots + cursor Easy Interface with a 4-bit or 8-bit MPU Display character pattern: 5 x 7 dots format: 1.

KS0076B Features

* Wave form: M signal B type

* Internal Memory - Character Generator ROM: 8320bits

KS0076B-Samsung.pdf

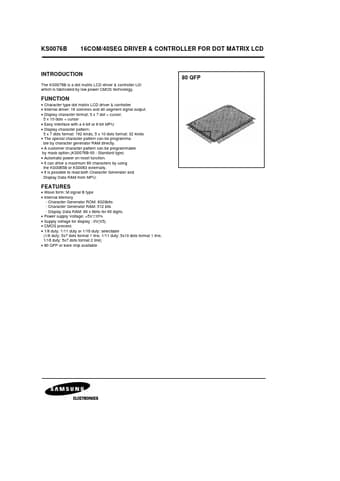

Preview of KS0076B PDF
KS0076B Datasheet Preview Page 2 KS0076B Datasheet Preview Page 3

Datasheet Details

Part number:

KS0076B

Manufacturer:

Samsung

File Size:

266.22 KB

Description:

16com/40seg driver & controller.
